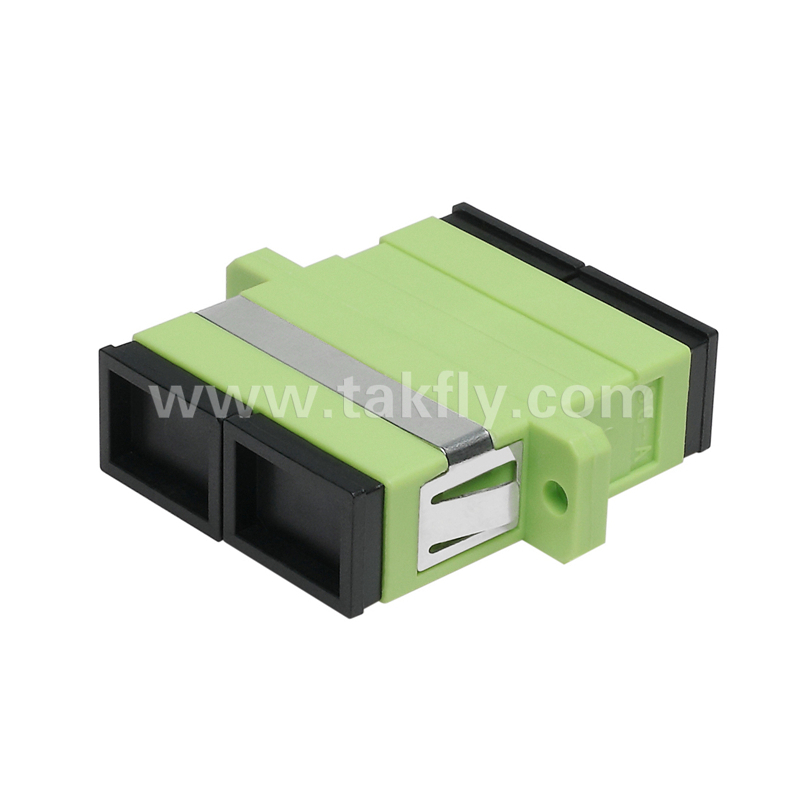

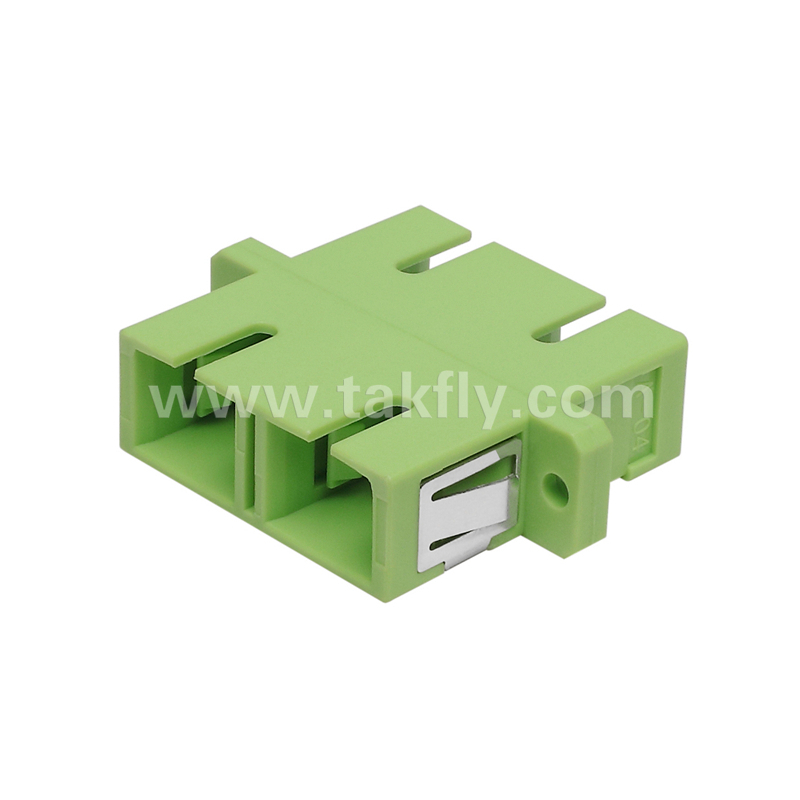

SC適配器

Optical fiber adapter is a device that is connected between fiber optic connectors to minimize the loss to the optical link so that the optical energy output from the transmitting fiber can be maximally coupled into the receiving fiber; The SC duplex adapter provided by TAKFLY has the advantages of convenient installation, low insertion loss, good interchangeability, high and low temperature resistance, and is widely used in telecom networks, CATV, FTTX etc.

在線咨詢

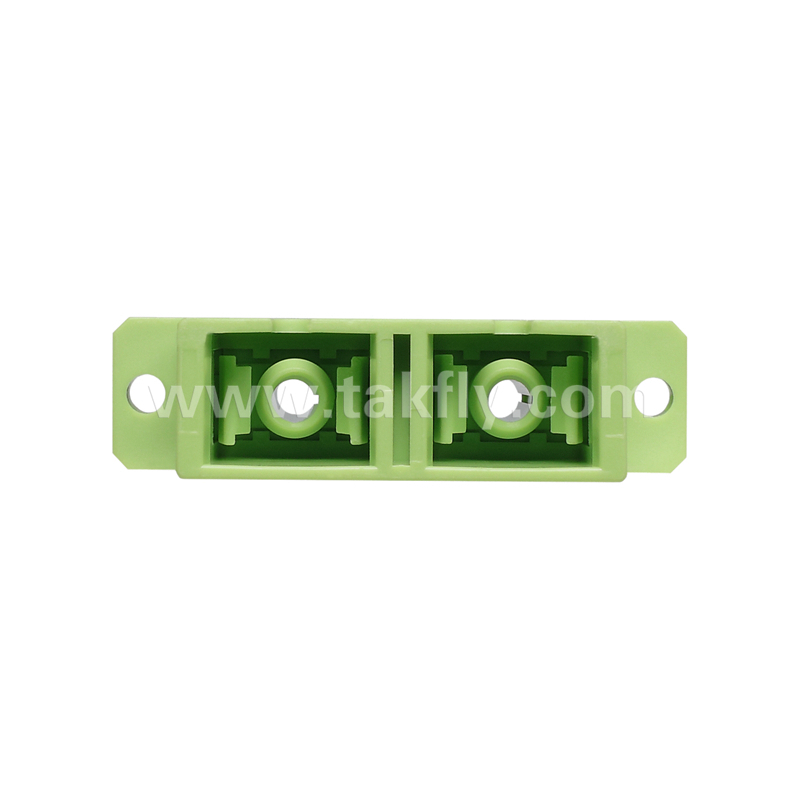

SC square，Easy installation

The SC adapter is a standard square structure, which is easy and quck to install.

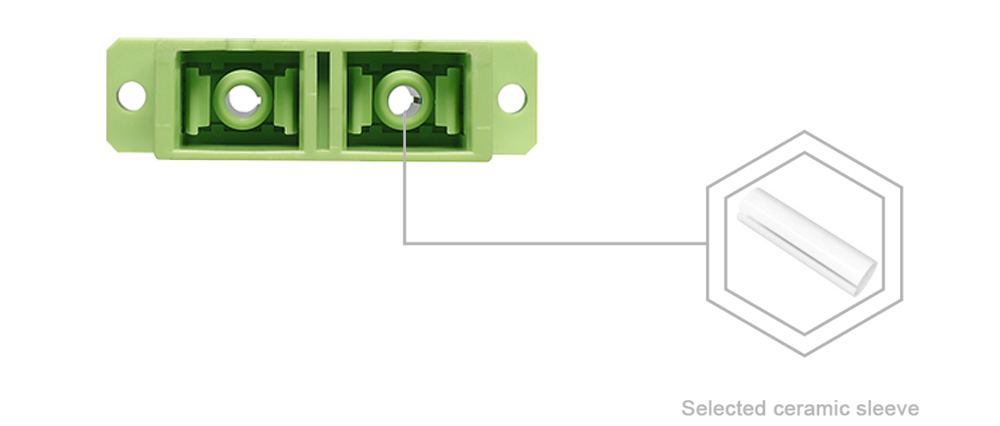

Selected ceramic sleeve

High-precision ceramic sleeves are selected to achieve high-precision alignment of the connectors to ensure long-term stable mechanical and optical performance.

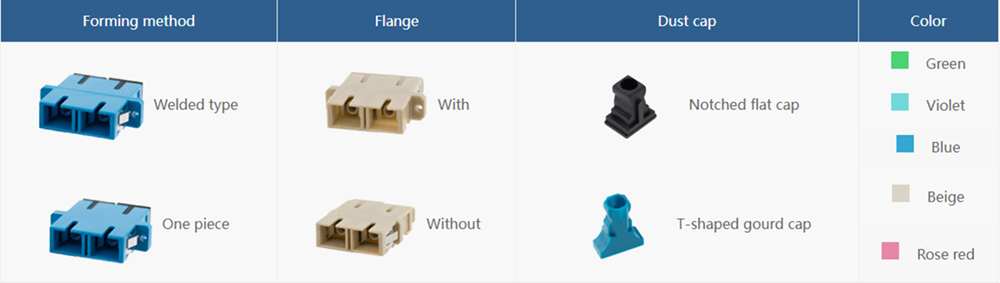

Multiple styles available

SC duplex adapter are available in a variety of options.

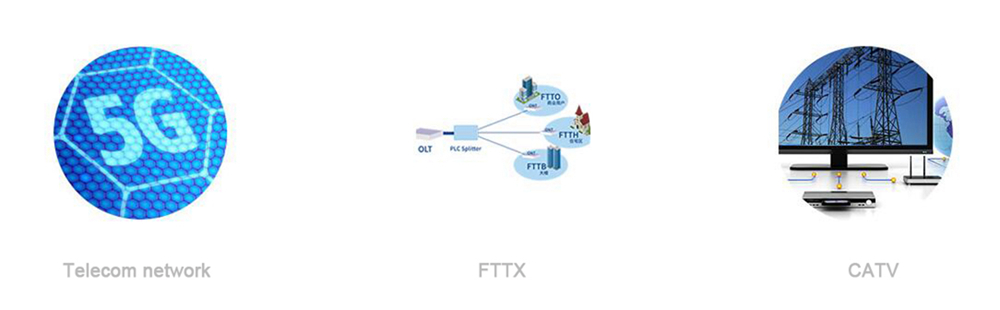

Application&Parameter

SC duplex adapter has the advantages of convenient installation, low insertion loss, good

interchangeability, high temperature resistance, etc. It is one of the indispensable connecting devices

in optical networks, and is widely used in telecommunications networks, CATV, FTTX and other fields.

Parameter

Product	SC Duplex Adapter
Mode	SM	MM
Insertion Loss	≤0.2dB	≤0.2dB
Mating Durability(500 timer)	Additional Loss≤0.1dB
Temperature Stability(-40℃～85℃)	Additional Loss≤0.2dB
Operating Temperature	-20℃～+75℃
Storage Temperature	-40℃～+85℃
